Dali Sub E - 12F
Dali Speakers

Subwoofer Activo de 12´ 220w RMS

Dali Sub E - 12F

The launch of the DALI SUB E-12 F marks a new stage of what is possible at this level of subwoofers.

The new subwoofer from DALI features a 12” woofer, capable of moving plenty of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior. Furthermore, the heavy magnet system wields a massive 4-layer, long-stroke voice coil.
All in all, the heavy-duty abilities of this “motor system” ensure that the woofer always follows the signal from the amplifier!

The heart of this subwoofer is the 170W RMS Class D amplifier with a highly linear response. Embracing a classic DALI trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, well-balanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protecting your subwoofer against overloading.

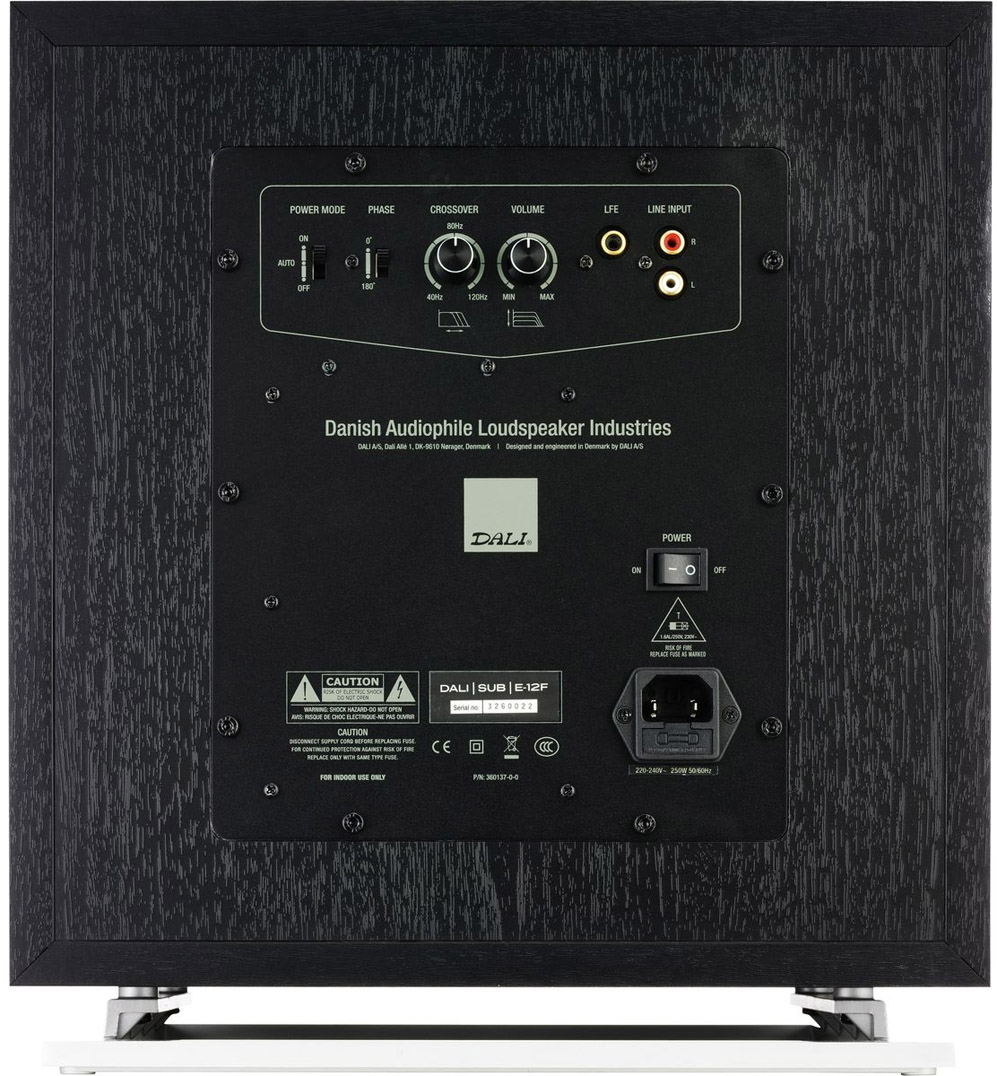

The back plate of SUB E-12F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.

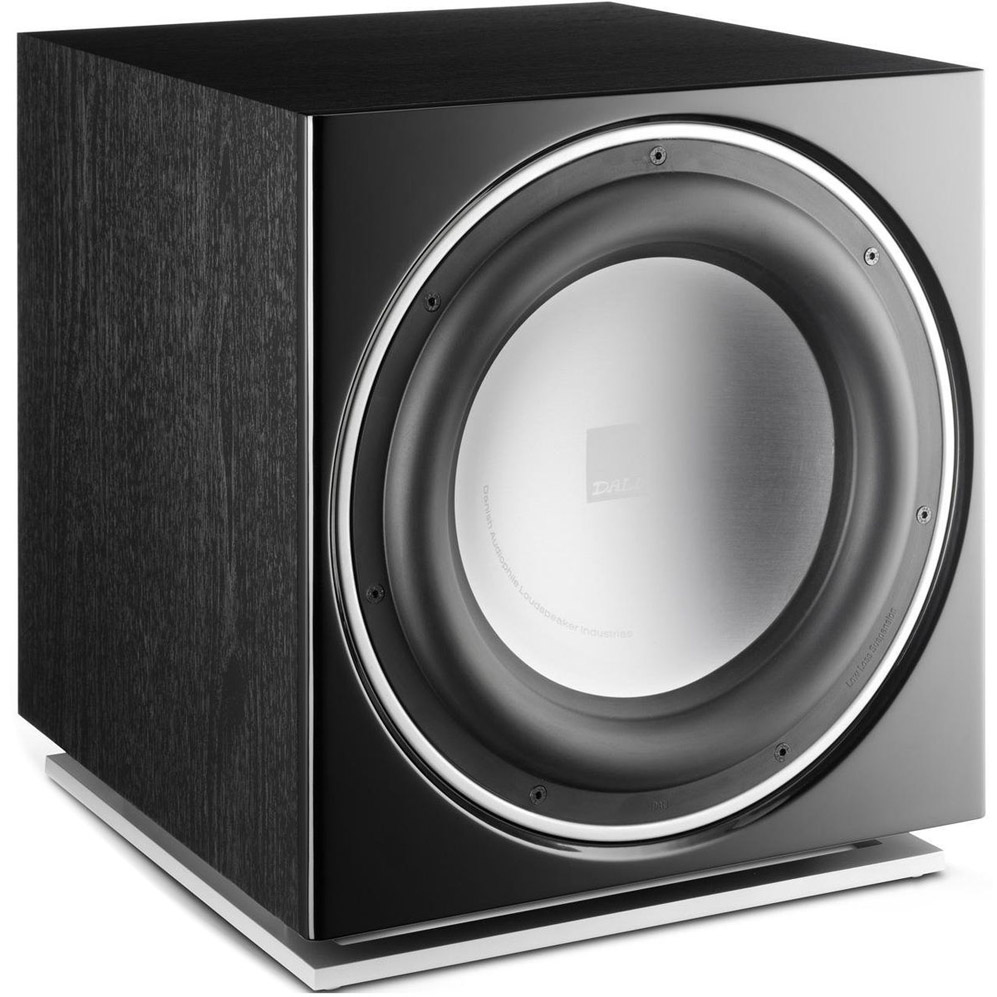

SUB E-12F is elevated from the floor by an aluminium base, while a down-firing bass port allows positioning directly against the wall. The front grille is mounted by magnets only – and when removed, the visual appearance changes from discreet to extravagant as the pure aluminium cone is revealed.

The DALI SUB-12F is recommended as compliment to the new ZENSOR series and is compatible with all DALI loudspeakers as the perfect completion of a DALI surround set up.

Dali Sub E - 12F


Serie de producto SUBWOOFERS
Tipo de caja acústica Subwoofer
Rango de frecuencia (+/-3 dB) [Hz] 28 - 190
Máximo SPL [dB]: 112
Frecuencias de cruce en filtro (Hz): 40 - 120 Hz
Módulo de altavoz de baja frecuencia 1 x 12" long stroke Polymere Aluminimum
Tipo de recinto Bass Reflex
Frecuencia de uso del Bass Réflex 36.0
Amplificación máxima, potencia salida [RMS watt] 220
Potencia salida continua IEC [RMS watt] 170
Impedancia entrada [O] 25
Conexión de entrada Mono line level (LFE)
Stereo line level (low pass filtered)
Blindaje magnético No
Emplazamiento recomendado Floor in the corner
La distancia recomendada de la pared cm 5 <
Funciones Crossover Frequency
Phase Switch
Consumo máximo de potencia W 250
Dimensiones máximas del altavoz incluyendo la base y la parrilla(AxAxP) [mm]: 370 x 340 x 380
Peso kg 14.7
Acabados Black Vinyl
Light Walnut Vinyl
White Vinyl

Dali Sub E - 12F


Consultar por este Producto

1 Año de Garantia Oficial - Disponibles en Color Negro / Blanco / Madera
