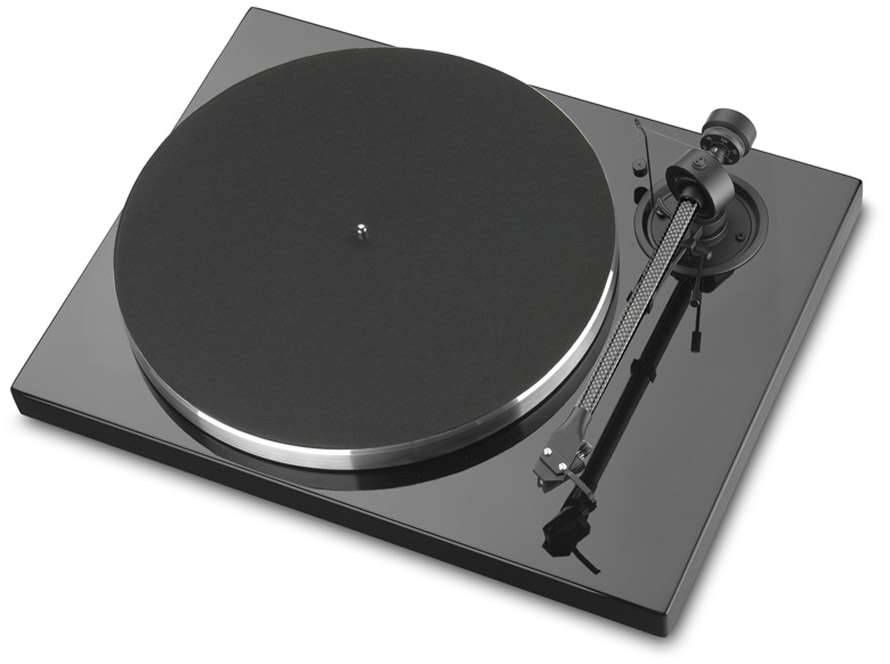

Pro-Ject 1-Xpression Carbon
Pro-Ject

Giradiscos Manual Con Capsula M2 Red Ortofon

Pro-Ject 1-Xpresion Carbon

• Belt drive system with synchronous motor

• Main platter bearing made from stainless steel runs in bronze bushing with Teflon bottom

• Heavy steel sandwich platter with TPE technology for superior resonance damping & felt mat

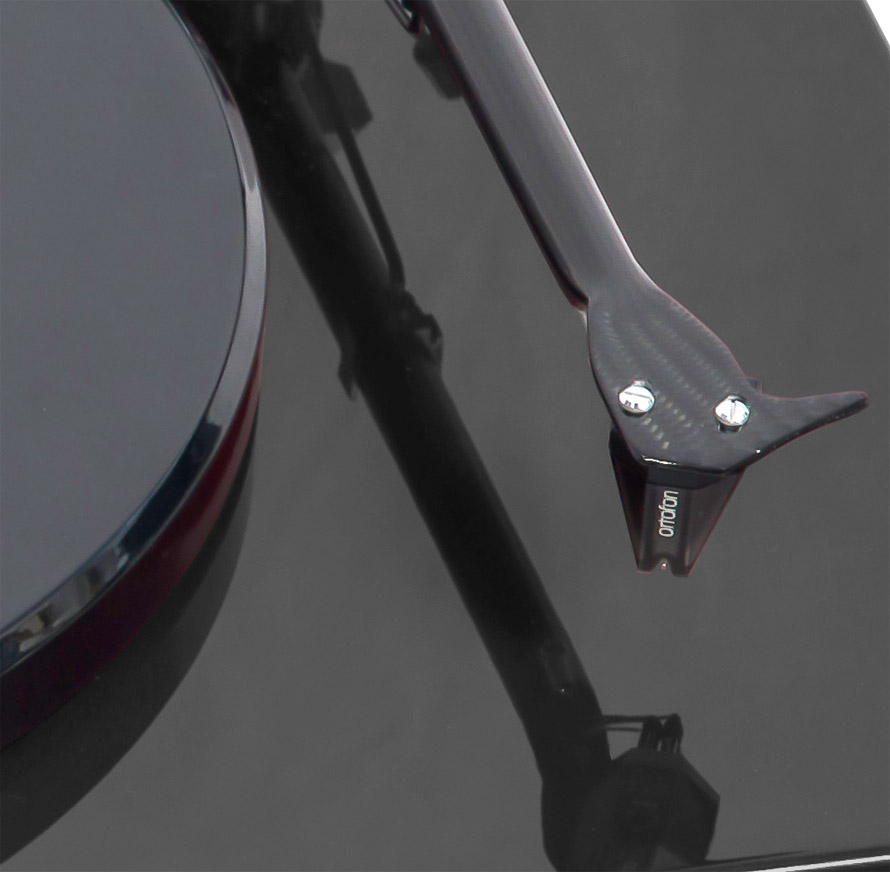

• 8,6” carbon tonearm with Evo Kardan rings

• Resonance damping counterweight design

• Gold-plated RCA interconnect cable

• Special turntable feet for effective decoupling for massively reduced risk of acoustical feedback

• Finish: Highgloss piano

• Dust cover included

Classic turntable with superior tone-arm reaches magical performance levels!

Pro-Ject 1-Xpression Carbon

1Xpression Carbon is the 6th generation of the hi-fi classic Pro-Ject 1, which was presented for the first time in 1991. No other entry-level turntable concept is more audiophile and the current version includes a totally new carbon tone-arm with spin-off „EVO“-technology. It has new innovative gimbal design features a resonance damping counterweight, that allows best performance for any cartridge. The approved belt drive design offers low noise AC motor with effective motor decoupling, ultra precision frequency DC-driven AC generator (like Speed Box) for ultimate speed stability. The complex main platter construction cannot be found elsewhere in this price range and is similar to the Xtension models. Advanced thermo plastic elastomers (TPE) are used in a sandwich construction with steel alloy for optimised resonance behaviour. Platter bearing axle is made from low tolerance chrome plated stainless steel running on a Teflon bottom in bronze bearing housing. Turntable main plinth is made from low resonance MDF, which effectivly is decoupled from structure-born noise by special absorber feet, that use TPE technology. Beside it`s class-leading sound quality, this turntable convinces with classic elegance and high-class black piano finish.

Technical data

Pro-Ject 1Xpression Carbon

speed 33, 45 (manual speed change)
principle belt drive
Speed variance 33: 0,2% 45: 0,18%
Wow & flutter 33: 0,14% 45: 0,13%
platter 300mm
main bearing stainless steel
effective arm length 218,5 mm
overhang 22,0 mm
effective tonearmmass 8,0g
tracking force range 0 - 30mn (2M 18mn recommended)
included accessories 15volts DC /0,8A power supply, dust cover
Power consumption 4,0 watts max /< 1 watt standby
dimensions 415 x 130 x 335mm (WxHxD)
weight 5,5 kg net / 8,0 kg gross weight







Ortofon M2 Red

Ortofon 2M Red Technical data

Output voltage at 1000 Hz, 5cm/sec.  -  5,5 mV
Channel balance at 1 kHz   -  1,5 dB
Channel separation at 1 kHz  -  22 dB
Channel separation at 15 kHz  -  15 dB
Frequency range at - 3dB  -  20-22.000 Hz
Frequency response  -  20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force  -  70 µm
Compliance, dynamic, lateral  -  20 µm/mN
Stylus type  -  Elliptical
Stylus tip radius  -  r/R 8/18 µm
Tracking force range  -  1,6-2,0g (16-20 mN)
Tracking force, recommended  - 1,8 g (18 mN)

Tracking angle  -  20°
Internal impedance, DC resistance  -  1,3 kOhm
Internal inductance  -  700 mH
Recommended load resistance  -  47 kOhm
Recommended load capacitance  -  150-300 pF
Cartridge colour, body/stylus  -  Black/Red
Cartridge weight  -  7,2 g


Replacement stylus unit  -  2M Red (interchangeable with 2M Blue and 2M Silver)

Consultar por este Producto

1 Año de Garantia Oficial - Disponibles en Color Negro Piano
