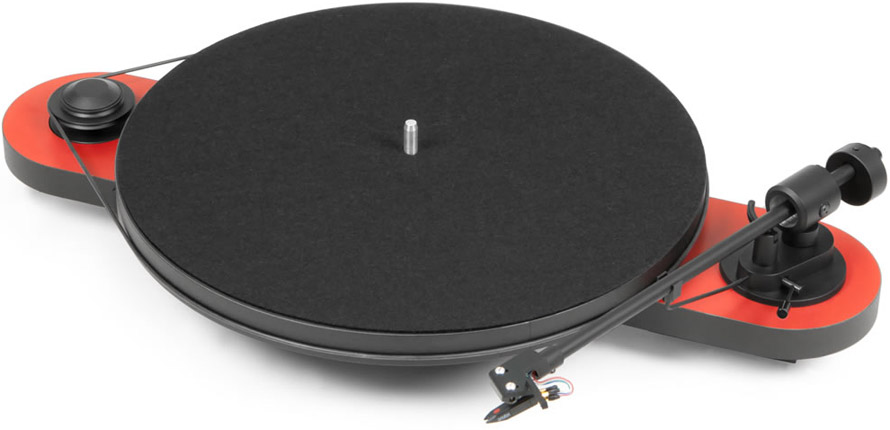

Pro-Ject Elemental
Pro-Ject

Giradiscos Manual Con Capsula OM5E Ortofon

Pro-ject Elemental

Especificaciones:

• Belt drive system

• Integrated motor control with DC power supply secures silent running

• Central gravity mass point made from artificial stone

• Main platter bearing made from stainless steel runs in bronze bushing with Teflon bottom

• Low resonance particle board platter with felt mat

• 8,6” ultra low mass tonearm with straight arm tube

• Pre-adjusted tracking force & antiskating

• Gold-plated RCA contacts & cartridge pins

• Colour options: red-black, white-black, silver-black

• Dust cover "Cover It E" separately available

Best buy turntable with maximum simplicity & outstanding sound quality!

Pro-Ject has decided to go after the cheap plastic turntable market with an high quality alternative that comes complete with an Ortofon cartridge. The new Elemental table is a real "plug'n'play" all the way. No adjustment of counterweight and antiskating is needed, because both are pre-adjusted. This new straight ultra low mass tonearm is optimised for Ortofon OM cartridge series. All the buyer needs to do is remove it from the box, remove bearing guard, locate the belt around the platter, remove stylus guard and plug it in.

The only plastic here is the stylus guard!

The hidden secret to the new table's sonic success, is a central gravity mass point, made from artificial stone and placed directly underneath the platter bearing. It is capable to fully absorb unwanted rumble and motor vibration. This turntable appears to be pure simplicity itself, while maintaining high quality audio standards.



Technical data

Pro-Ject Elemental

speed 33, 45 (manual speed change)
Speed variance 33: 0,2% 45: 0,18%
Wow & flutter 33: 0,14% 45: 0,13%
platter 300mm MDF
tonearm 8,6” metal tube
effective arm length 218,5 mm
overhang 22,0 mm
effective tonearmmass 8,0gr
counterweight for cartridge mass 3 - 5,5g (included)
tracking force range 0 - 30mn (OM5 18mn pre-adjusted)
output RCA to phono input
included accessory RCA cable, 15V DC power supply
power consumption 4,0 watts
dimensions 430 x 90 x 300mm (WxHxD)
weight 2,7 kg net

Ortofon OM5E

Ortofon OM 5E Technical data

Output voltage at 1000 Hz, 5cm/sec. - 4 mV
Channel balance at 1 kHz  -  2 dB
Channel separation at 1 kHz  -  22 dB
Channel separation at 15 kHz  -  15 dB
Frequency range at - 3dB  -  20-25.000 Hz
Frequency response  -  20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force *) - 65 µm
Compliance, dynamic, lateral  -  20 µm/mN
Stylus type  -  Elliptical
Stylus tip radius  -  r/R 8/18 µm

*) Typical value

Tracking force range  -  1,5-2,0 g (15-20 mN)
Tracking force, recommended  -  1,75 g (17,5 mN)
Tracking angle  - 20°
Internal impedance, DC resistance  -  750 Ohm
Internal inductance  -  450 mH
Recommended load resistance   -  47 kOhm
Recommended load capacitance -   200-600 pF
Cartridge colour, body/stylus - Black/Black
Cartridge weight  -  5 g
Replacement stylus unit  - Stylus 5 E

Consultar por este Producto

1 Año de Garantia Oficial - Disponibles en Color Rojo / Negro
