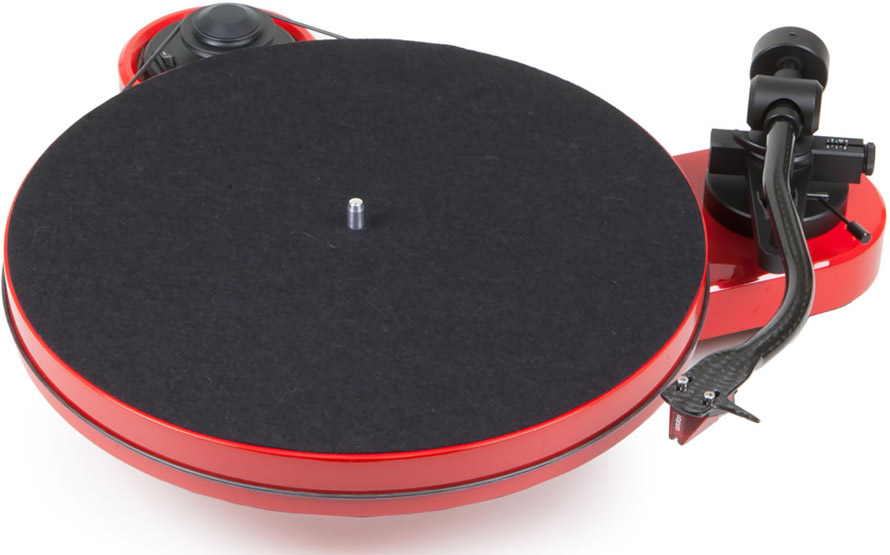

Pro-Ject RPM 1 Carbon
Pro-Ject

Giradiscos Manual Con Capsula M2 Red Ortofon

Pro-Ject RPM 1 2 M Red

• Precision belt drive using synchronous motor

• NEW Ultra-precision DC-driven AC generator motor power

• NEW Inverted platter bearing with ceramic ball

• Platter made from MDF using felt mat

• NEW 8,6” S-shaped tonearm made from carbon, aluminium, resin utilising special heat and pressure treatments

• NEW Magnetic antiskating

• NEW Counterweight with TPE damping

• Available with or without Ortofon 2M Red cartridge

• 3 high-gloss colours (black, red, white)

Ingenious entry to the world of luxurious styling for audiophiles

Our newest "BEST BUY" star implements a radical concept that does not compromise sound quality at an entry-level price.

RPM-1 Carbon utilises a lot of innovations and enhancements: A low resonance chassis holds a newly designed inverted platter bearing with ceramic ball for further reduced rumble. An outboard 15V AC motor is smoothly driven using an ultra-precision AC generator with DC power supply for further enhanced speed stability. A completely new designed S-shaped tonearm tube is made from carbon fibre, aluminium and resin. Using a complex 3-step process with heat treatment and 100bar pressure, arm tube rigidity isstrenghtened, internal damping is maximized and resonances are reduced to a minimum.This makes the tonearm also suitable for MC cartridges. Additional features are a new magnetic antiskating mechanism and a TPE-damped counterweight.

All ingredients add up to a miracle in sound for the price and ultra-stylish look!

Technical data

Pro-Ject RPM 1 Carbon

Speed 33, 45 (manual speed change)
Drive principle belt drive
Platter 300mm MDF
Mains bearing stainless steel axle with ceramic ball
Wow & flutter 33: +/- 0,14% I 45: +/- 0,13%
Speed drift 33: +/- 0,27% I 45: +/- 0,19%
Signal to noise - 71dB
Effective arm length 218,5 mm
Effective arm mass 13,5 g
Overhang 22mm
Tracking force 0 - 25mN
Included accessories 15 volts DC / 500 mA power supply
Power connection 110/240 Volt - 50 or 60 Hz
Power consumption 5 watt max / < 0,5 watt standby
Dimensions 380 x 110 x 350mm (WxHxD)
Weight 3,8 kg net



Ortofon M2 Red

Ortofon 2M Red Technical data

Output voltage at 1000 Hz, 5cm/sec.  -  5,5 mV
Channel balance at 1 kHz   -  1,5 dB
Channel separation at 1 kHz  -  22 dB
Channel separation at 15 kHz  -  15 dB
Frequency range at - 3dB  -  20-22.000 Hz
Frequency response  -  20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force  -  70 µm
Compliance, dynamic, lateral  -  20 µm/mN
Stylus type  -  Elliptical
Stylus tip radius  -  r/R 8/18 µm
Tracking force range  -  1,6-2,0g (16-20 mN)
Tracking force, recommended  - 1,8 g (18 mN)

Tracking angle  -  20°
Internal impedance, DC resistance  -  1,3 kOhm
Internal inductance  -  700 mH
Recommended load resistance  -  47 kOhm
Recommended load capacitance  -  150-300 pF
Cartridge colour, body/stylus  -  Black/Red
Cartridge weight  -  7,2 g
Replacement stylus unit  -  2M Red (interchangeable with 2M Blue and 2M Silver)
