Yamaha RX-V685
Yamaha

Sintoamplificador A / V 7.2 para Home Theater

Dolby Atmos
Dts X
MusicCast
HDCP2.2
4K Pass Through
Air-Play
dlna Certified
USB
Optimizacion de Sonido YPAO
WI FI Certified
HDMI™ (High-Definition Multimedia Interface)
Made For iPod iPad iPhone

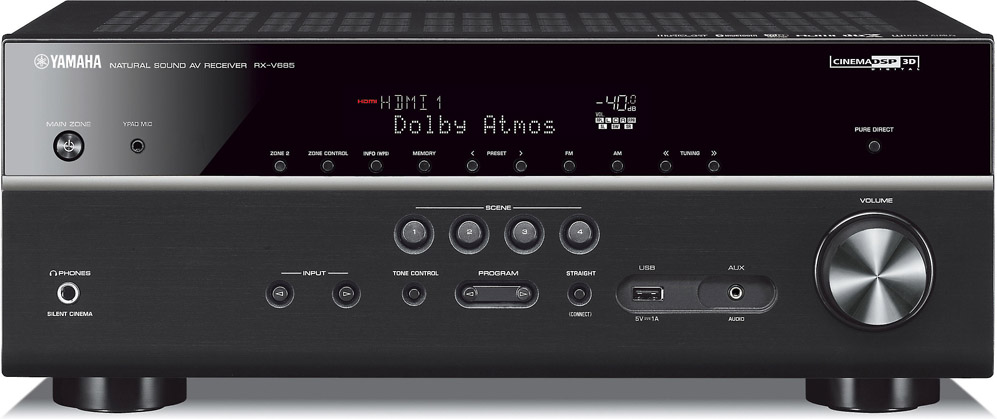

Yamaha RX-V685

Experiencias sin parangón. Este receptor AV de 7.2 canales abre las puertas a nuevas posibilidades de entretenimiento para que disfrutes de un avanzado cine en casa con lo último en audio y vídeo, incluyendo Dolby Atmos®, DTS:X™, streaming inalámbrico, dos salidas HDMI® y mucho más.

  • Potente sonido surround de 7.2 canales con Zona 2
  • Wi-Fi®, Bluetooth®, AirPlay®, Spotify Connect y MusicCast multiroom
  • Pandora®, Spotify, Radio por Internet Sirius, TIDAL, Deezer, Napster y mucho más
  • HDMI® con HDCP 2.2 (5 entradas/2 salidas)
  • 4K Ultra HD, HDR10, Dolby Vision™, Hybrid Log-Gamma y BT.2020
  • Control de voz usando un dispositivo Alexa como Echo o Echo Dot
  • Compatible con MusicCast Surround: añade altavoces MusicCast 20 o MusicCast 50 para crear un sistema 5.1 con altavoces surround traseros inalámbricos

Yamaha RX-V685

xplore Every Dimension

Dolby Atmos® and DTS:X™

Compatibility with these amazing sound technologies transports you from an ordinary moment into an extraordinary experience. They deliver breathtakingly rich and realistic surround sound, positioning and moving individual sounds to any virtual point in your room, including objects moving overhead. Experience the overwhelming realistic movement and immersion in videos — right in your home theatre room.

Sumérgete en el sonido

CINEMA DSP 3D

This unique Yamaha proprietary sound field creation technology, was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilising its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing that vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of those concert halls on home equipment. Immerse yourself in the astounding realism of your movies, and enter a world of profound theatre sound.

Professional-grade Sound Optimisation

YPAO™-R.S.C. (Reflected Sound Control)

YPAO-R.S.C. analyses room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimum sound. It employs Reflected Sound Control to correct early reflections and deliver studio-quality sound. It also provides DSP Effect Normalisation, which varies the CINEMA DSP parameters according to the reflected sounds. It’s like having a professional installer calibrate your system, creating an ideal listening space with perfectly balanced sound.

Optimum Performance

High-quality Parts

Yamaha AV receivers feature fully discrete power amplifiers to minimise distortion and adopt independent pure power supplies for the analogue and digital circuitry. They also feature ultra-high performance with 384 kHz / 32-bit DACs, also with Independent power supplies, for reproducing absolutely all the audio in High Resolution sound sources without noise. A new high sound quality IC is employed for volume control and large heat sinks suppress vibration. Down to every detail, these AV receivers are designed with full emphasis on the highest possible sound quality.

Your Hub of Home Entertainment.

Sin cables

Altavoces surround inalámbricos

Combina este receptor AV con los altavoces inalámbricos MusicCast 50 o MusicCast 20 y crea cómodamente un cine en casa de 5.1 canales con altavoces traseros inalámbricos. Disfrutarás de un sonido increíblemente realista con una instalación limpia y ordenada y convertirás tu salón en un espacio de entretenimiento en el que podrás disfrutar plenamente de películas, música y juegos.

Audio Multi-room

MusicCast

Audio Multi-room

Todo un universo musical

Servicios de streaming

Explore a world of music with music streaming services* built-in. Syncing your playlists and song likes from your smart phone or computer to the RX-V685, music streaming services make it impossibly easy to either listen to your faves or discover new music.

* Music streaming service availability varies by region.

Easily Experience 9.1-channel Realism

Virtual Speaker Technology

With the power of CINEMA DSP 3D, the Virtual Presence Speaker function makes full use of centre and surround speakers to create audible information from where presence (height) speakers are normally installed. In addition, this model also features a Virtual Surround Back Speaker function. Even without using surround back speakers, you can experience more natural surround sound thanks to CINEMA DSP 3D playback — giving you the virtual equivalent of up to 9.1-channel surround, even with a 5.1-speaker configuration.

* Dolby Atmos and DTS: X signals cannot be used with these virtual features.

Convenient Enjoyment

Two HDMI Outputs

Since the RX-V685 has two HDMI output terminals, simultaneous connection to the TV and LCD projector is possible. Which means you can use your TV as usual but use the projector for your favourite movies and special programming — easily and without having to change any connections. The built-in HDMI functionality is of the latest specifications, corresponding also to HDR (Dolby Vision Compatible, Hybrid Log-Gamma), 4K / 60p passthrough & 4K upscaling, and so on.

The Joys of Vintage Vinyl

Entrada Phono

Disfruta de la música de tu colección de vinilos a través del terminal de entrada Phono.

Effortlessly Sophisticated.

Hablemos

Amazon Alexa en MusicCast

“Alexa, ask MusicCast to play Favourite 1 in the Kitchen.” With Alexa voice control integration, all you have to do is ask. The RX-V685 name offers full compatibility with Amazon’s range of voice control devices. Welcome to the smart home.

* Availability of voice command control via Amazon Alexa varies by region.

Easy Operation, Detailed Settings

AV Controller App

This easy-to-use app lets you conveniently and ‘smartly’ control your AV receiver’s power, volume, input selections, DSP modes — and much, much more — from an iOS or Android™ device. You can also use as many as 23 different languages and customise the interface by hiding unused icons and renaming functions. A tablet version is also available.

Easy to Use and Multilingual

Advanced Graphical User Interface

The latest graphical user interface from Yamaha has a high-resolution display with clear, easy-to-use menus and includes a selectable status bar that shows input source, volume level, DSP mode and audio format. The GUI provides a choice of eight languages: English, French, German, Spanish, Italian, Russian, Japanese and Chinese and can be displayed over both normal and 3D pictures.

Enjoy in Two Rooms

Multi-zone Function (Zone2)

Featuring Zone2 compatible speaker terminals, this system can send the same (or even different) AV contents playing in the main room for playing in another room. For example, if you’ve got speakers installed in your bedroom or kitchen, you can go to that other room and enjoy listening to the same or different main room content.

Other Features

Even Higher Quality Sound

Bi-amp Connection

This AV receiver features bi-amping capability, driving the treble and bass ranges of the front speakers (L, R) with independent amplifiers, making it possible to enjoy even higher quality sound from the front channels — an important consideration in home theatre setups.

Brilliant and Lively

Music Enhancer

The Compressed Music Enhancer from Yamaha is now optimised for Bluetooth audio transmissions to ensure that your music will have vivid, energetic sound quality during wireless playback.

Fácil de instalar

Aplicación AV Setup Guide

This special app assists you with cable connections between the AV receiver and source devices. Additionally, it guides you through various settings such as speaker connections, TV and source device connections and power amplifier assignments.

Respeta el medio ambiente

Modo Eco

Cuando está activado, el modo ECO reduce el consumo aproximadamente en un 20 por ciento*, gracias a un avanzado diseño que permite ahorrar energía. * Con respecto al consumo con el modo ECO desactivado (medición de Yamaha).

Amplifier Section Channel 7.2
Rated Output Power (1kHz, 1ch driven) 150 W (4 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 90 W (8 ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 150 W (8 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 125 / 165 / 190 / 235 W
Surround Sound Processing CINEMA DSP Yes (3D)
DSP Programs 17
Dialog Level Adjustment Yes
Virtual Presence Speaker Yes
Virtual Surround Back Speaker Yes
Dialogue Lift Yes (no presence speakers required)
SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
Dolby Atmos Yes
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Surround Yes
DTS:X Yes
DTS-HD Master Audio Yes
Audio Features File Format MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz
Pure Direct Yes (with video on mode)
Compressed Music Enhancer Yes (incl. enhancer for Bluetooth®)
YPAO sound optimization Yes (R.S.C)
YPAO Volume Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
Bi-amp capability Yes
Audio Delay Yes (0-500 ms)
DA Converter Burr-Brown 384 kHz / 32-bit DAC x 4 for main zone
Video Features 4K Ultra HD Pass-through and upscaling Yes (4K / 60p, 4:4:4)
HDMI 3D passthrough Yes
HDMI eARC Yes (via future firmware update)
HDMI Audio Return Channel Yes
HDMI upscaling Yes (Analogue to HDMI® / HDMI to HDMI)
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes
Connectivity MusicCast Surround Yes
HDMI Input/Output 5 / 2 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
HDMI CEC Yes (SCENE, Device Control)
USB Input USB Memory, Portable Audio Player
Network Port Yes
Wi-Fi Yes (2.4 / 5 GHz)
AirPlay Yes
Bluetooth Yes (SBC / AAC)
Front AV Input USB / Mini Jack
Digital Audio Input/Output: Optical 2 / 0
Digital Audio Input/Output: Coaxial 2 / 0
Analog Audio Input/Output 4 (front 1) / 0
Phono Input Yes
Component Video Input/Output 1 / 0
Composite Video Input/Output 1 / 0
Preout 2.2-ch
Headphone Output 1
Tuner Section FM/AM Tuner Yes
User Interface On-screen display Graphical User Inter face
SCENE SCENE PLUS (8 sets)
App Control Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control Yes
Remote Control Unit Yes
Zone Control Zone 2 Audio Output Preout
Powered Zone Zone 2
+12V Trigger Output 1
Remote (IR) Input/Output 1 / 1
Party Mode Yes
General Standby Power Consumption (IR only) ≤0.1W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D) 435 x 171 x 378 mm (with antenna up: 435 x 248 x 378 mm); 17-1/8” x 6-3/4” x 14-7/8” (with antenna up: 17-1/8” x 9-3/4” x 14-7/8”)
Weight 10.5 kg; 23.1 lbs.





Consultar por este Producto

1 Año de Garantia Oficial - Disponibles en Color Negro
