Pro-Ject Debut Carbon Piano
Pro-Ject

Giradiscos Manual Con Capsula OM10E Ortofon

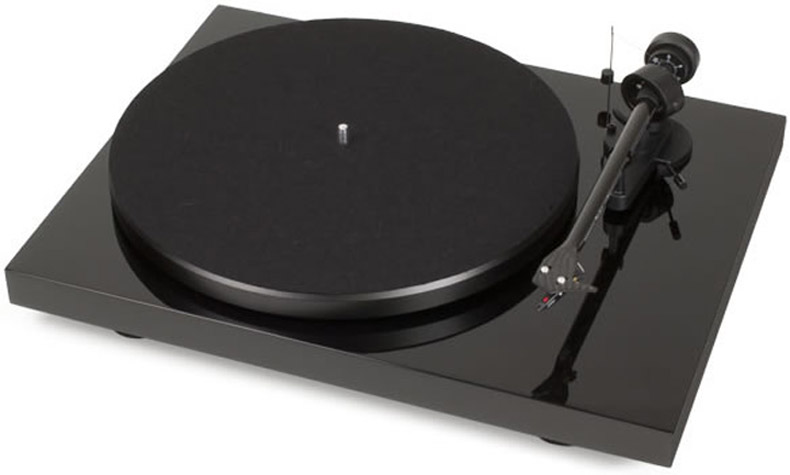

Pro-Ject Debut Carbon Piano OM10

8,6” carbon tonearm

• Increased platter size with more weight

• Precision belt drive with synchronous motor

• New DC power supply with ultra precision frequency DC-driven AC generator (like Speed Box) for ultimate speed stability.

• New TPE motor suspension

• Felt mat

• magnetic cartridge options from Ortofon OM 10 or 2M red

• 7 high-gloss colours

• Dust cover included

The best-buy turntable classic with carbon tonearm and DC power supply!

The first Debut turntable, introduced in the late 1990s, was a revolution for the hi-fi industry. For the first time after the arrival of Compact Disc and the assumed demise of vinyl records, an analogue product re-emerged in the “mass market” – something all music lovers could afford.

The new DEBUT Carbon DC was designed to set new standards in this category for the coming decade – perfectly timed as analogue today is again a respected source, while the demand for good turntables is growing again!

The most obvious improvement is the inclusion of a CARBON TUBE for the tonearm, which increases stiffness and decreases unwanted resonance.

This material normally is extensively used in high-end tonearms, but – because of cost reasons – was never used in products at lower price levels. Together with other improvements like an increase in platter size and weight to realize even smoother rotation, the overall sound quality is greatly improved. The approved belt drive design offers low noise AC motor with effective motor decoupling (utilising TPE-damping) and ultra precision frequency DC-driven AC generator (like Speed Box) for ultimate speed stability without unwanted vibration.

The DEBUT CARBON DC is offered in high-gloss black or shiny red, green, blue, yellow, silver or white as no-added-cost option.

Debut Carbon (DC) / OM 10

Technical specifications

Pro-Ject Debut Carbon (DC)

Speed 33, 45 (manual speed change)
Drive principle belt drive
Platter 300mm metal with felt mat
Mains bearing stainless steel
Wow & flutter +/- 0,10%
Speed drift +/- 0,80%
Signal to noise - 68dB
Tonearm 8,6”, Carbon
Effective arm length 218,5 mm
Effective arm mass 6,0 g
Overhang 18,5mm
Tracking force 10 - 30mN
Power connection 110/120 or 230/240 Volt - 50 or 60 Hz
Included accessories 15 volts DC /0,8A power supply, dust cover
Standby power consumption < 1 watt
Dimensions 415 x 118 x 320mm (WxHxD) lid closed
Weight 5,6 kg net

Ortofon OM10

Specifications
Type of pickup: MM (Moving Magnet)
Output voltage: 4mV *
Amplifier connection: Phono MM
Channel deviation at 1 kHz: 2dB
Crosstalk at 1kHz: 22dB
Crosstalk at 15kHz: 15dB
Frequency range: 20-22 . 000 Hz
Frequency response: 20-20 . 000 Hz + 3dB / 1dB
Tracking ability at 315 Hz: 70 .mu.m **
Needle compliance: 25 micron / mN
found. Tonearm type: very easily, easily and
  moderate ***
Abtastdiamant: elliptic
Rounding: r / R 8/18 micron
Tracking force range: 1 2,5 -17,5 mN ( 1,25 -1,75 g)
Recommended tracking force: 15mN ( 1,5 g)
Scanning: 20 degrees
DC resistance: 750 Ohm
Inductance: 450 mH
found. Terminator: 47 kOhm
found. Connection capacity: 200-500 pF
Weight: 2,5 g (5 g with the document inserted additional weight)
Special feature: *** Without pickled additional weight
  Suitable for medium weight tonearms
Replacement needle insertion: Stylus 10
* At 1kHz, 5cm / sec.   ** At recommended tracking force
